Drive it by remote control
Glide around on a cushion of air with a standard RC transmitter and servo steering.
Engineering made fun

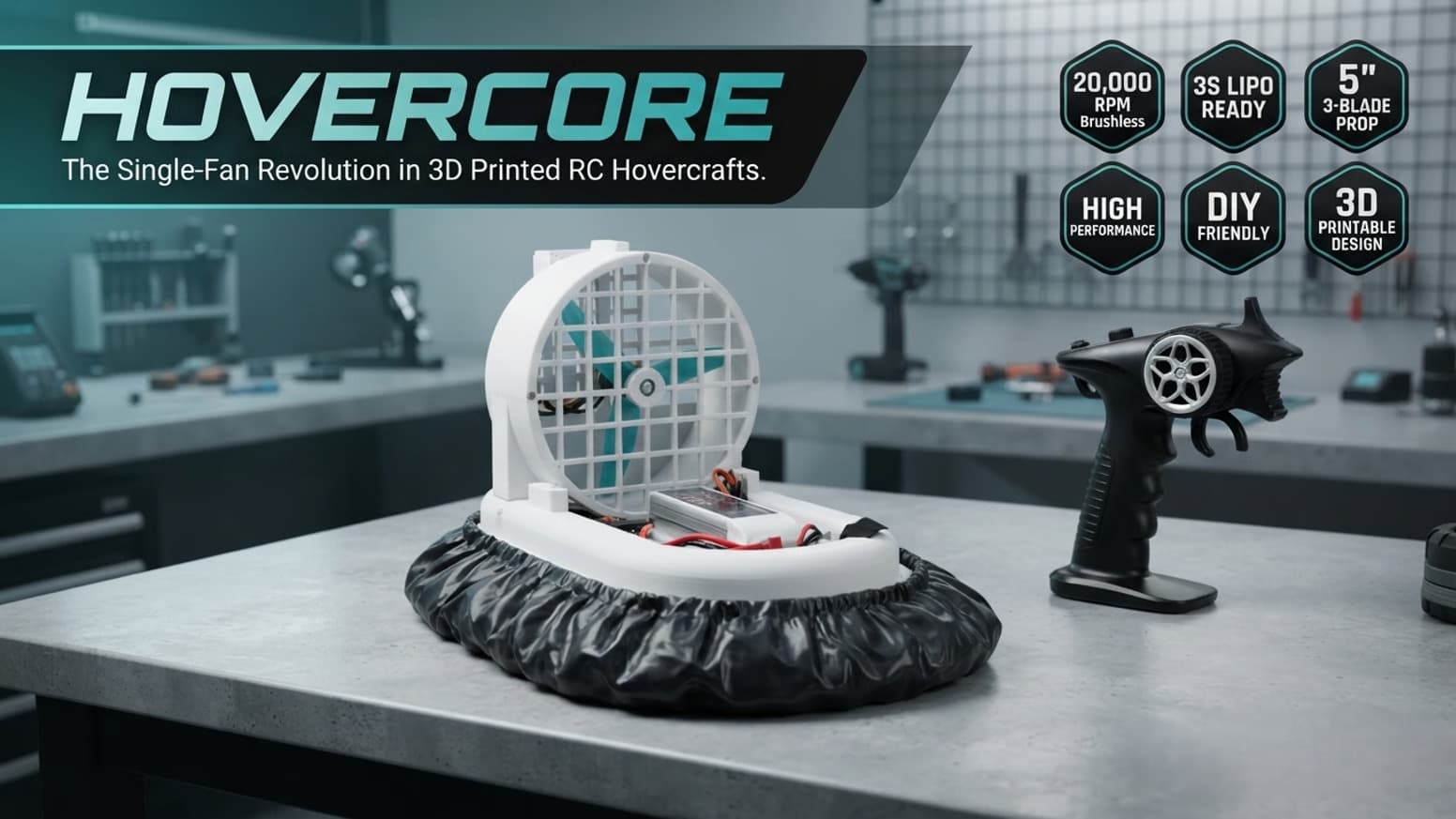

Build your own RC hovercraft

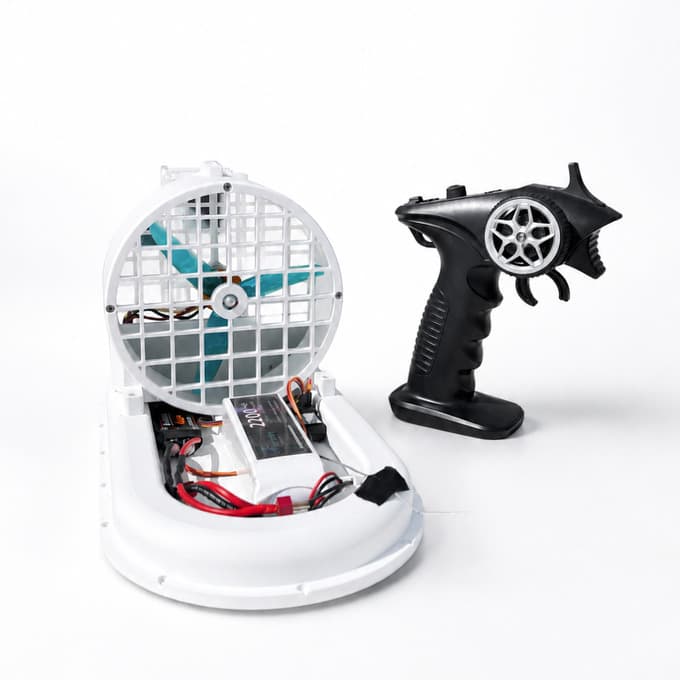

Hovercore is a high-performance, fully 3D printable RC hovercraft designed for makers, students and engineering enthusiasts. Powered by a 3S LiPo battery and a high-speed brushless motor, it delivers strong airflow and responsive performance in a compact package. Steering is handled by a servo, so you can drive it with a standard RC transmitter.
One fan, two jobs
A single airflow system

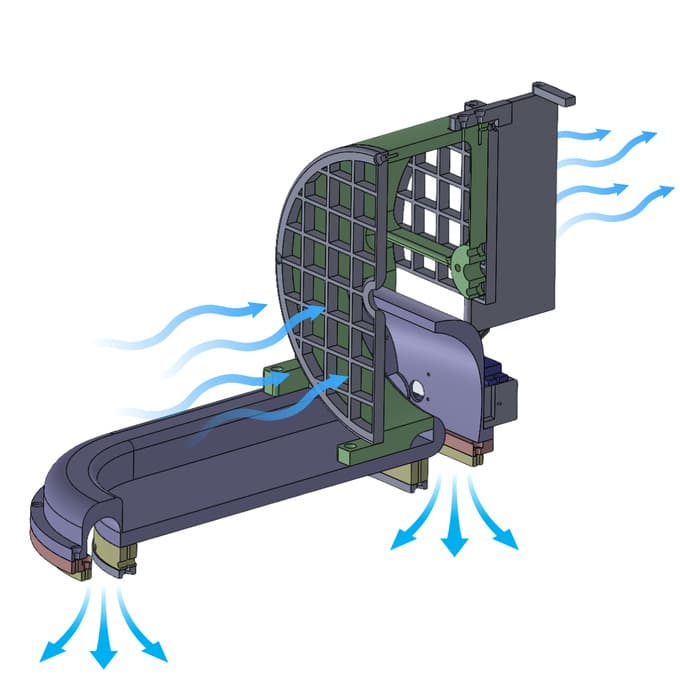

Traditional hovercraft designs use separate motors for lift and propulsion. Hovercore uses a single 5-inch, 3-blade propeller to generate both the air cushion underneath the craft and the forward thrust. Fewer parts, less weight and a simpler build. A protective grille surrounds the propeller during operation.
Documentation
Assembly instructions preview
Preview the Hovercore assembly instructions. The complete manual is included with your purchase.
What it enables
What can you do?
Learn aerodynamics
See how a single propeller splits its airflow between lift and thrust.
Get hands-on with RC electronics
Wire a brushless motor, ESC, servo and receiver into a working vehicle.
Print it your way
Print every structural part in PLA or PETG, in the colors you like.
Build requirements
What you need

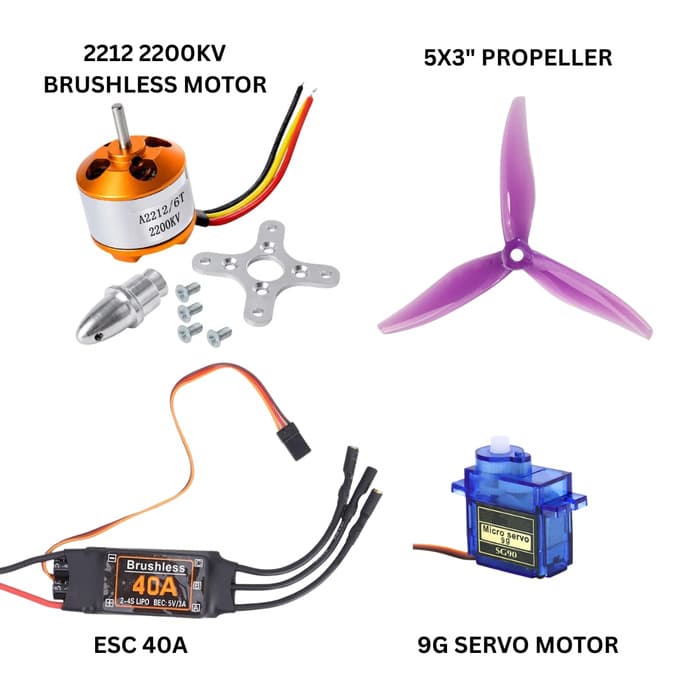

- 3D printer and PLA or PETG filament
- 2212 2200KV brushless motor
- 40A ESC
- 5" 3-blade propeller
- SG90 9g servo
- 4-channel RC transmitter and receiver
- 3S 2200 mAh LiPo battery and charger
- 2.5×10 mm screws and a black trash bag for the skirt
Included in the package
Digital package includes
- Complete STL files for 3D printing
- Recommended print settings
- Step-by-step assembly instructions
- Wiring diagram
- Future updates
Support
Frequently Asked Questions
Is Hovercore a physical product?
No. Hovercore is a digital download containing STL files and project information. Electronics are not included.
Do I need a 3D printer?
Yes. All structural parts are designed for standard FDM 3D printers, with PLA or PETG.
Is Hovercore suitable for beginners?
Yes. It uses standard RC components and the manual guides you through printing, assembly and wiring step by step.
€25
